Unilin Thin-R PIR Thermal Liner Insulated Plasterboard

Thin-R Thermal Liner Insulated Plasterboard

Key features:

  • Insulation and drylining in one application
  • Composite PIR insulated panels
  • Vapour control layer
  • High-quality certified product

Enter Eircode at checkout for delivery pricing.

From €47.33 Regular Price €47.33
Bulky Product
Delivery in
2-3 Days
SKU
PSTTW5262MM-x
Brand
Unilin

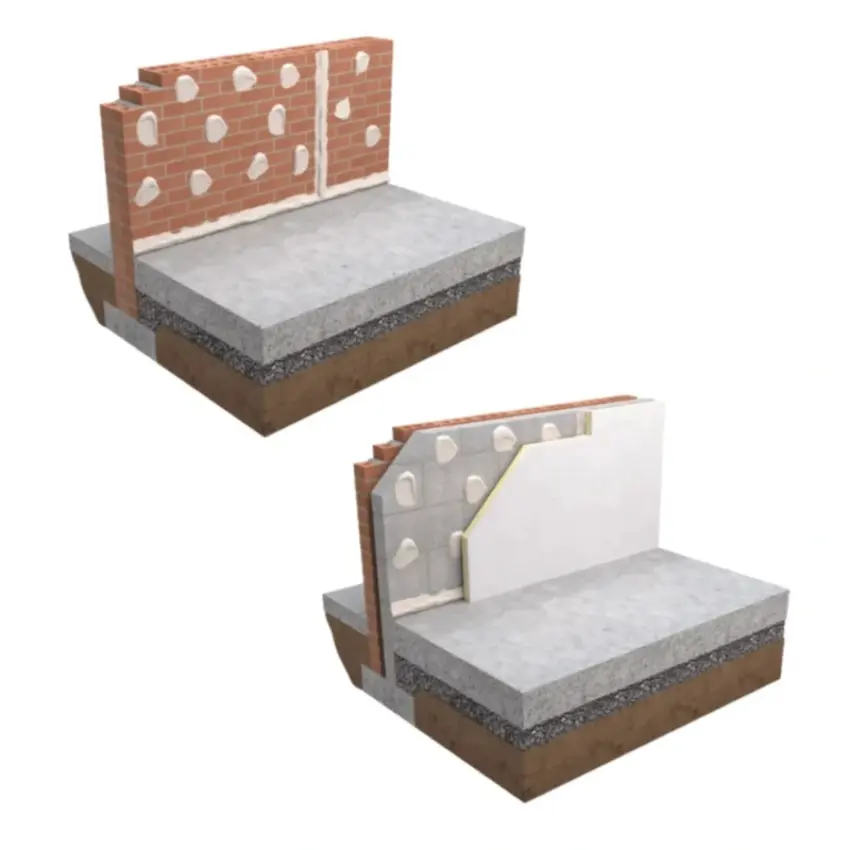

This insulated plasterboard is the Thin-R Thermal Liner (Dot & Dab XT/TL) from Unilin Insulation and provides a high-performance solution for insulating drylining walls fixed with adhesive dabs.

The system consists of a composite PIR insulation core bonded to 12.5mm tapered edge plasterboard, designed specifically for internal applications and installed using proprietary adhesive bonding.

Thin-R Thermal Liner delivers insulation and drylining in one operation, making it a highly efficient solution for both new build and renovation projects.

The composite kraft facings on both sides incorporate an integral vapour control layer, helping to significantly reduce the risk of condensation when installed correctly.

Manufacturing processes, quality control, and fixing methods are fully certified, ensuring consistent product quality and reliable performance on site.

Thermal conductivity: 0.022 W/m·K (BS EN 13165:2008)
Fire performance: Euroclass B-s1,d0

Whether building new or upgrading, improving energy efficiency can reduce energy costs and enhance internal comfort levels.

Features:
  • Insulation and drylining in one application
  • Composite insulated PIR panels
  • Provides an effective vapour control layer
  • Reduced insulation thickness compared to traditional build-ups
  • Suitable for a variety of wall types
  • Ideal for refurbishment and new build projects
  • Cost-effective thermal upgrade solution
  • High quality, certified product
Additional Product Information

Thin-R Thermal Liner XT/TL is designed to provide high levels of thermal insulation and drylining in a single operation, making it a preferred solution in modern construction and renovation projects.

The vapour control layer within the composite facing helps reduce condensation risk. When joints are sealed and taped in accordance with good drylining practice, a continuous vapour control layer can be achieved.

Fire safety detailing is important during installation. Fire stops should be installed at the top and bottom of boards and around all openings such as doors and windows. These are formed by continuous adhesive ribbons, which also help reduce thermal looping and improve overall wall U-values.

Product Specification
  • Board size: 2438mm x 1200mm (8ft x 4ft)
  • 12.5mm plasterboard bonded to PIR insulation core
  • Installed using adhesive dabs (Dot & Dab system)
  • Integral vapour control layer
  • Thermal conductivity: 0.022 W/m·K
Installation:
You can see the installation instructions here.
