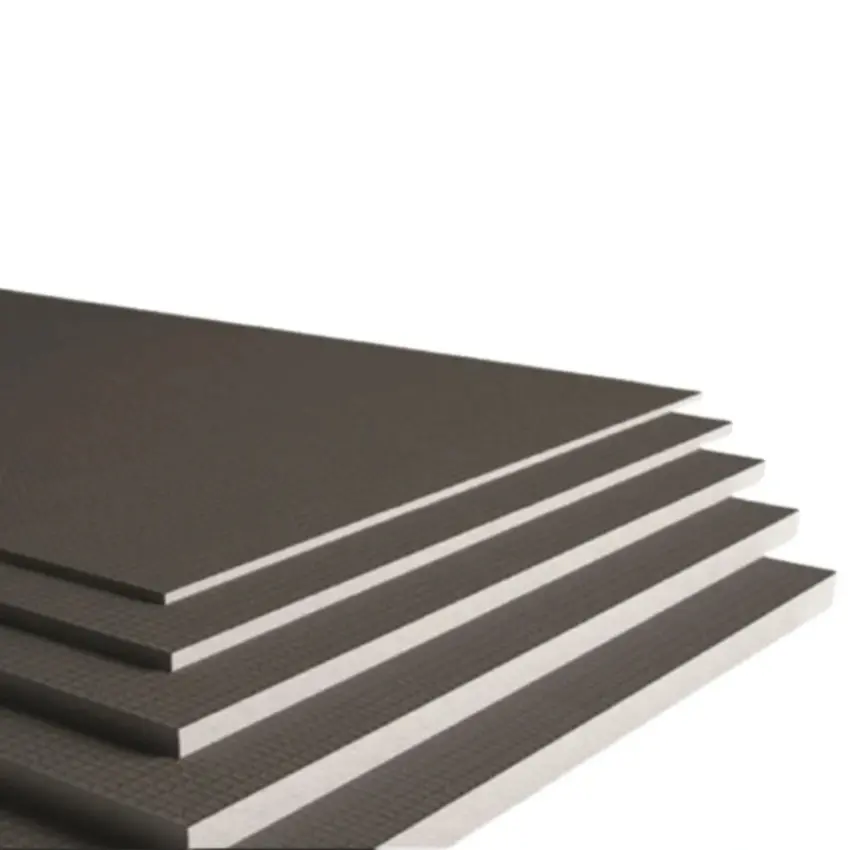

Tile Backer Board

Tile Backer Board for laying tiles

Key features:
  • Creates a smooth surface for laying tiles
  • Used in underfloor heating installation along with wall renovations etc
  • Can be used in wet rooms / bathrooms etc
  • Ideal for Trades people and for DIY
Enter Eircode at checkout for delivery pricing.
From €16.69
Bulky Product
Delivery in
2-3 Days
SKU
30515-x
Brand
Arc

Using Insulated Tile Backer Board is the easiest way to create a smooth surface for tile covering in any space.

They are are essential when installing underfloor heating or renovating your flooring or walls in your wet room or walk in shower.

This Tile Backer Board is an extruded polystyrene foam core sandwiched between mortar/fibreglass outer layers.

This 12mm variation is suitable for use on a wall for tiling etc.

Tile Backer Boards can be used both internally and externally and can accept both tile adhesive and plaster.

Boards should be primed with Arc Tilers Primer before plastering.

Key features:

Specification:

  • Xps Density DIN 53420 36 ± 0.02 kg/m3
  • Thermal Conductivity EN 12167 0.033 W/m.K
  • Compressive Strength (10% deflection) EN 826 300 kPa (30 tonnes/m2)
  • Flexural Strength ASTM C203 0.30 ± 0.02 MPa
  • Water Absorption (2-day immersion) ISO2896 0.2% by volume
  • Water Absorption (Capillary) DIN 53428 Zero
  • Water Vapour Diffusion Resistivity (µ ) DIN 52615 110 - 225 µ
  • Water Vapour Permeability ASTM E-96 0.028 ng/Pa.m.s
  • Maximum Tile Loading Weight CERAM121107 60kg/m2
  • Flammability EN 13501 Class E
  • Impact Sound Reduction BS-ISO140- dLw = 21
  • EU controlled substances content N/A none

Composition:

XPS core Alkali Mesh,Polymer Mortar Layer x 2
